A Complete, Simple, & Standalone ATO!
Plug & Play Operation
Includes Powerful 24V DC PMUP
Two Optical Sensors with No Moving Parts
IQ-Fill Water Run-Time Intelligence
Mechanical Float Valve
Audible Alarms
No Apex Necessary
Advanced Featured Unlocked When Paired With Apex Controllers
No aquarium task is more tedious than adding freshwater to replace the water that evaporates out of our aquariums each day. Because of this, it's no surprise that an auto top off system (ATO) is usually the first piece of automation equipment purchased by new hobbyists. Having an ATO is particularly useful when you're away on vacation and don't have someone to watch over your aquarium or simply want to go a few days without having to think about your tank.
The ATK Auto Top Off Kit from Neptune Systems is simple to install, works with or without an Apex Controller, and has multiple back-up safety measures to prevent overfilling.
Three Levels of Safety
Backup Optical Sensor: If the primary water level sensor fails, a backup optical sensor will stop the ATO pump and an alarm will sound.
IQ-Fill (stand-alone mode only): The ATK will not add more than double the learned water amount. If the system is running for too long, it will stop the ATO pump and an alarm will sound.

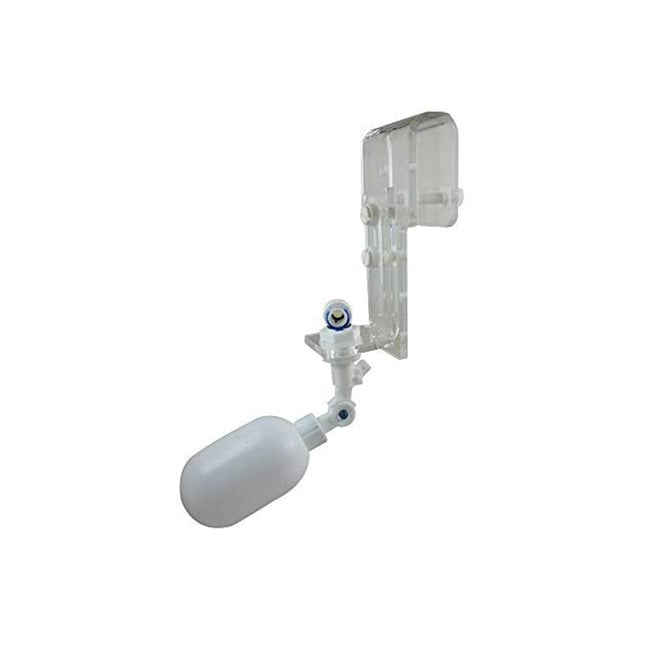

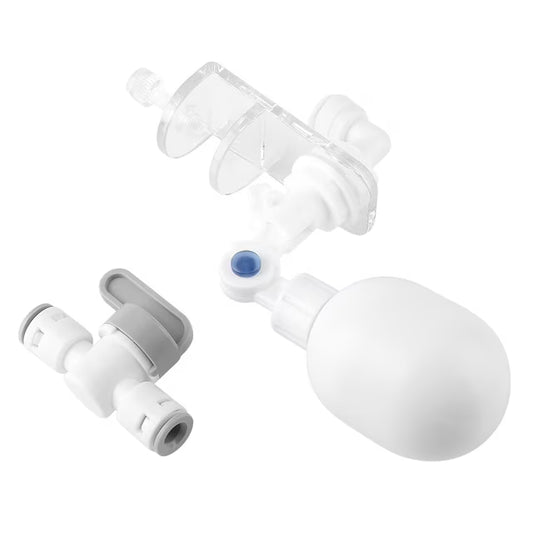

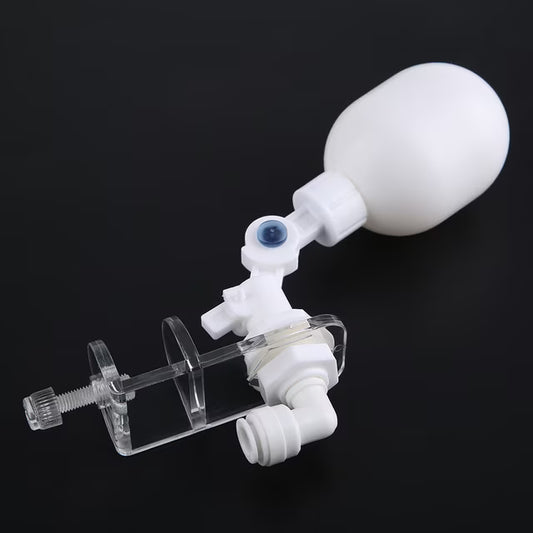

Physical Float Valve: In the rare event that the electronic failsafes do not work, a mechanical float valve will stop water from flowing into your aquarium.
PMUP v2 ATO Pump
The PMUP is a small utility pump that is perfect for moving water from your RODI reservoir to the aquarium or sump. This pump has a vertical design that easily drops into most water jugs or ATO reservoirs and can pump water over 14 feet vertically, allowing for efficient water delivery from remote or lower-floor reservoirs.
The bottom of the pump features a removable screen for easy access to the pump's impeller. This design keeps potential debris out of the pump while also allowing easy access for cleaning.
Extra Value for Apex Owners
If you already have an Apex, setting up the ATK is still super-simple. Just plug in all the components, attach it to your Apex via the AquaBus cable, and run the set-up task in Apex Fusion. With the ATK connected to an Apex, you get the added benefit of having email and push notifications if something goes wrong and you can integrate the ATK into other functions.
The FMM module included with the ATK has four ports for sensors and probes. The two optical sensors included with the ATK only use port-1 and port-2, which means there are two free ports that can be used for additional accessories like leak detectors, flow sensors, and additional optical sensors.
What's Included?
FMM Fluid Monitoring Module
(2x) Optical Water Level Sensors
Float Valve
90° Tube Fitting
PMUPv2 ATO Pump
4 Meters Orange RO Tubing
3/8" to 1/4" Push Connect Adapter Fitting
1/4" Push Connect Siphon Break
Set Screw for Non-Float Valve Applications
24V 36W Power Supply

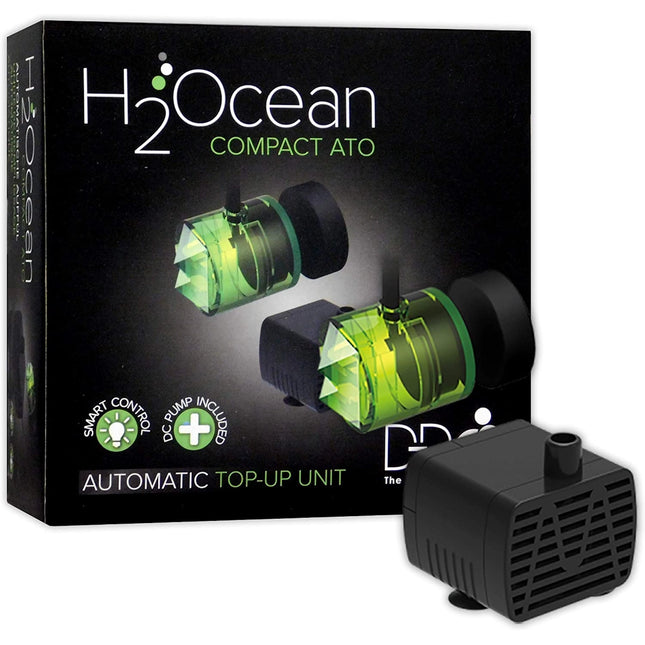

H2Ocean Compact Auto Top-UpThis ultra-compact smart auto top-up unit is simple to mount, easy to use and has twin optical sensors for added security.
Features
• Auto Top-Up Unit (ATO)• Compact intelligent sensor with twin optics and visual alarm• Built-in real-time failsafe protection• No moving parts to fail• Small footprint• Easy to install• Plug & Play• Complete with DC Top-Up Pump
Specifications
Power input: 100˜240 VAC 50-60 HZ
DC Pump: Head 250cm, Flow rate: 280 lph
Glass mounting thickness 12.5mm
Pipe size 9mm OD - 6.5mm ID , 2 meters Long
Recomended for aquariums above 50L in volume, for nano or pico tanks below this volume the AutoAqua Smart Nano ATO can be used.
With the automatic EHEIM Refill+ you can be certain that your aquarium water is always on a healthy level.

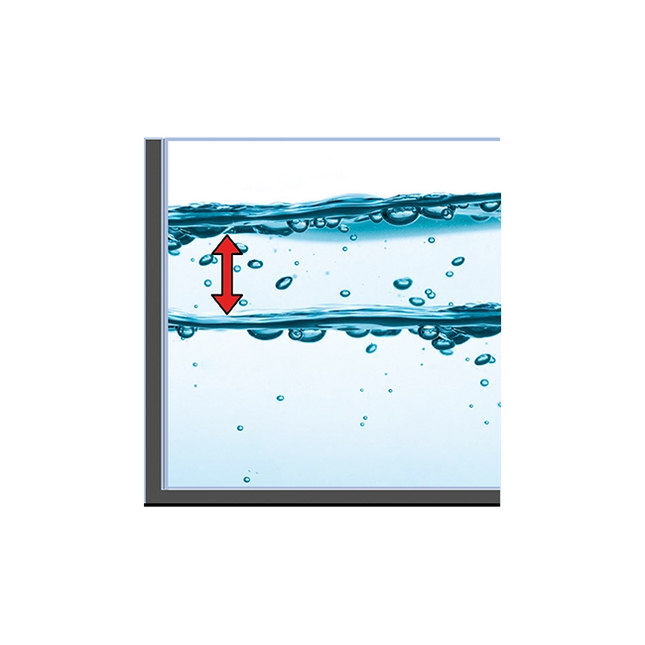

Water is permanently evaporating in aquariums without cover. This is a major problem and can be life-threatening for the aquarium inhabitants, due to the fact that harmful substances (like nitrate among others) and metabolic products concentrate in the water. Marine water tanks also have the added risk that the salinity increases (density).
EHEIM Refill+ automatically refills the evaporated water. For this purpose a sensor is permanently measuring the water level. You simply place the EHEIM Refill+ outside on the glass pane of the aquarium – or in case of a marine water aquarium alternatively at the filter tank in the cabinet (sump). As soon as the water level sinks, the refill pump starts.Thereby an intelligent controller monitors the refilling process and adapts the quantity of water to the needs and registers changes. In case of significant changes the refilling process will be stopped and like that nothing can happen.
Advantages of the automatic EHEIM Refill+
Automatic refilling of evaporated water, perfect during holidays.
The sensor with LED display is permanently measuring the water level
Fastening of the sensor easily accessible outside of the glass pane of the aquarium – or in case of a marine water tank alternatively at the filter tank in the cabinet (sump).
Intelligent controller with LED display regulates the refilling. It memorizes the filling quantity and the filling times and this way adapts the water quantity to the tank size and the changes (e.g. seasonal).
Safety: In case of significant irregularities the refilling process will be stopped and this prevents an overflowing.
Energy saving low voltage pump (4,5 W), maintenance-free when operating with ultrapure water (osmosis water).
Refilling tube and drainage elbow with mounting bracket for glass thicknesses 4-12 mm.
All components are of high quality and work extremely reliable.
Intelligent filling level control with safety stopEHEIM Refill+ is an electronically controlled automatic refill for all (open top) fresh water and marine water tanks; it refills evaporated water regularly and at the same time adjusts the refill quantity to the tank size and the evaporation rate.

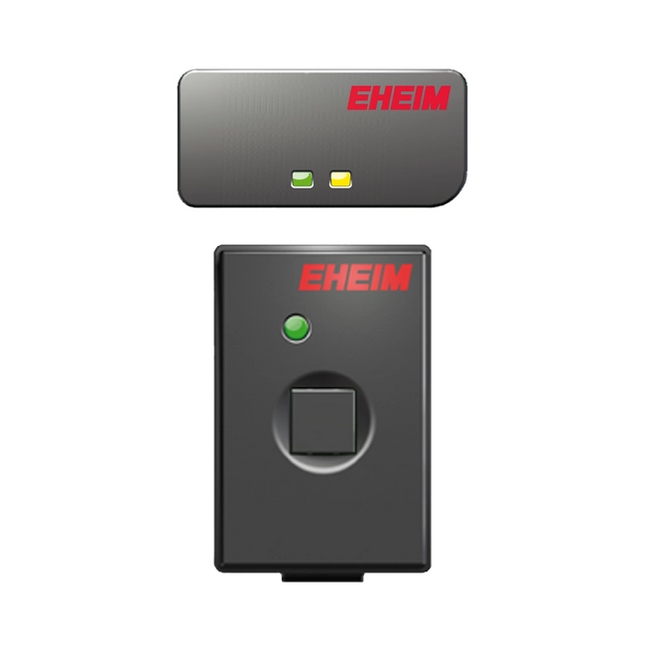

The automatic refill consists of power supply unit, controller with LED display, sensor with LED display, refill pump as well as refill tube and drainage elbow with mounting bracket and clamp.
SensorThe sensor monitors the water level. It is glued outside on the glass pane of the aquarium - in case of a marine water tank alternatively at the at the filter tank in the cabinet (sump). As soon as the water level sinks, the refill pump starts.ControllerThe intelligent electronics memorize the tank size (refill quantity and duration) and the e.g. seasonally evaporation (refilling frequency). In case of significant deviations the security stop is released and this prevents an overflowing.The refilling process is stopped,- if it needs twice as long as before – or- if the time between the refill intervals is significantly shorter or longer (shorter than the half or twice as long).The automatic refill can be switched off at a button (e.g. for water change or work in the aquarium).Refill pumpEnergy saving low voltage pump (4,5 W), is placed in the refill reservoir (tank, bucket, canister or others). As it normally has only contact with ultrapure water or with osmosis water it is not necessary to clean it.It is suggested for refilling to use ultrapure water or osmosis water because if you refill tap water, the salt concentration and the level of unwanted substances increases (nitrate, phosphate, silicic acid, total hardness, carbonate hardness etc.)
Freshwater:
Yes
Packing:
1 Part (s)
Packing dimensions(Depth):
9 cm
Packing dimensions(Height):
23.6 cm
Packing dimensions(Width):
16 cm
Sea water:
Yes
Tiny, Reliable and Long-lasting Auto Top Off System
*NEW Controller programming & circuitry for added system protection
*NEW Improved sensor design for longer durability
World’s smallest dual-sensor ATO
Two layers overfill protection
Intelligent QST programming
Secondary optical sensor
Super precise water level control
Super easy installation; plug-and-play
No programming or adjustments required
Works in complete darkness

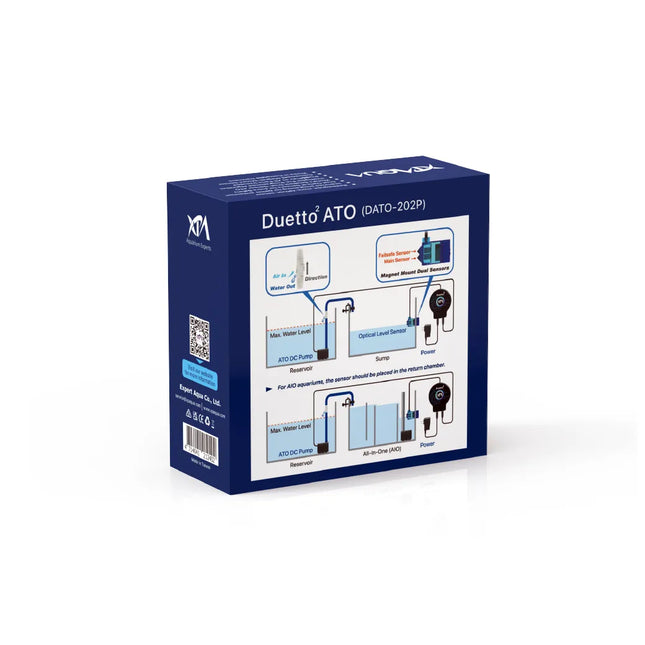

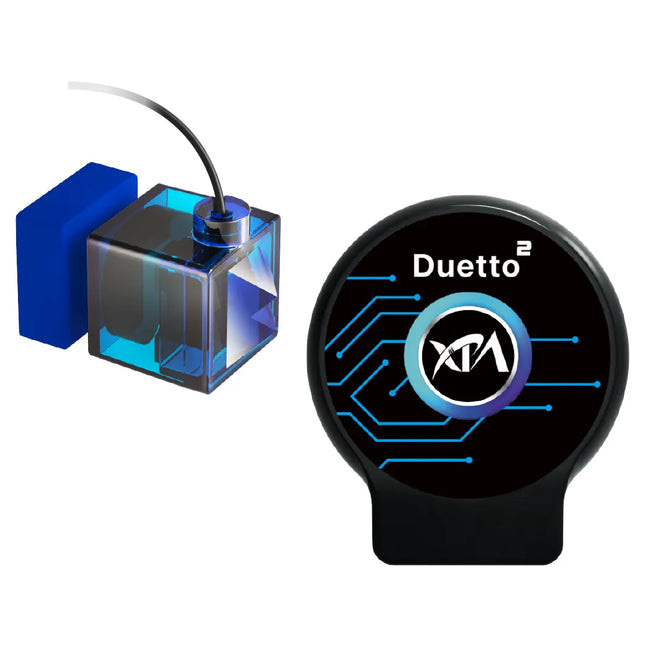

With huge features jammed in a tiny package, the Duetto2 is the perfect ATO for your aquarium. XPAqua’s proprietary dual-optical sensor packs two precise level sensors in one incredibly small package, which has been redesigned for even better lifespan and durability! In addition to keeping your water level constant, the two sensors also work in concert with the updated controller's intelligent QST programming to help prevent overfilling.
All the installation parts are included and a magnetic coupling allows you to easily mount or adjust the dual-sensor. Installation takes just seconds so you can spend less time working on your aquarium and spend more time enjoying your aquarium.
Specifications:
ATO DC Pump Max Head - 8.2 ft
ATO DC Pump Flow Rate - 74 gph
Controller Dimensions - 2.2" H x .88" W x 1.9" L
Sensor Cable Length - 10 feet
Pump Cable Length - 69 inches
Max Tank Mounting Thickness: 1/2"
Power Supply Cable Length: 67 inches
Tubing ID: 6.5mm
Tubing OD: 9.0mm
What's Included?
1x Duetto Optical Controller
1x Power Supply
1x Water Pump
1x Siphon Break
7ft 6.5 mm ID / 9.0 mm OD Water Tubing
Replenish Evaporated Water... with Confidence!

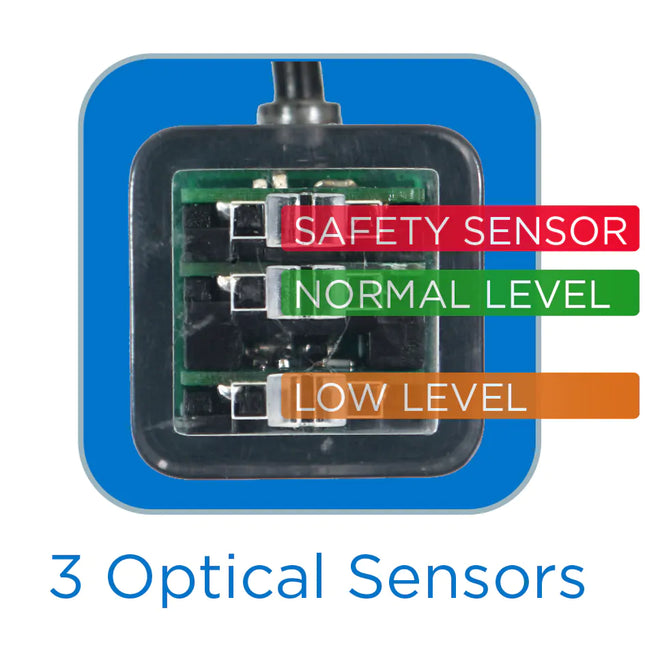

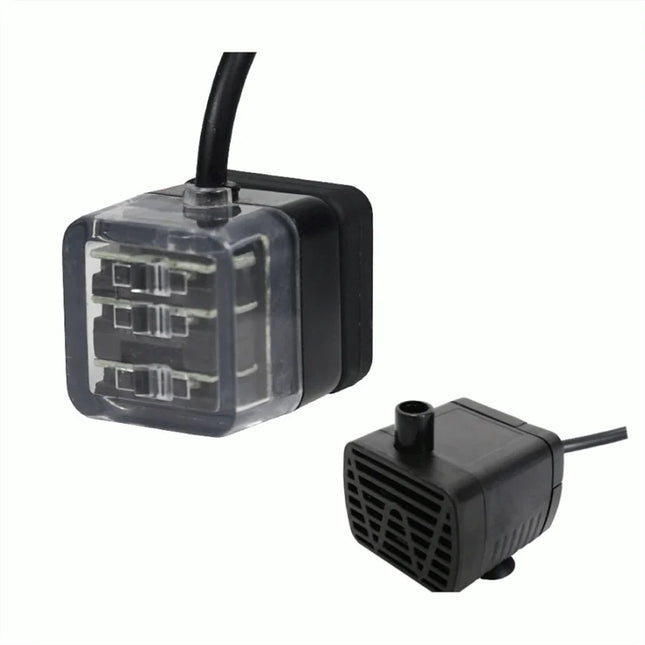

The WaveReef ATO System is an easy-to-use pump and sensor combo that offers peace of mind when replenishing evaporated water to an aquarium. Its twin optical sensors extend the device’s life and reliability by limiting the frequent powering on and off of the refill pump.
This system also includes a third (safety) sensor that provides another level of security to prevent overflows. The WaveReef NATO-3M ATO is a well-thought-out automated system with a fail-safe design that uses two (2) optical sensors to monitor the fluid level of your aquarium or sump. The third optical sensor provides real-time protection against the failure of the second sensor. Best of all, it is very easy to install and contains no moving parts that can fail.
