Description

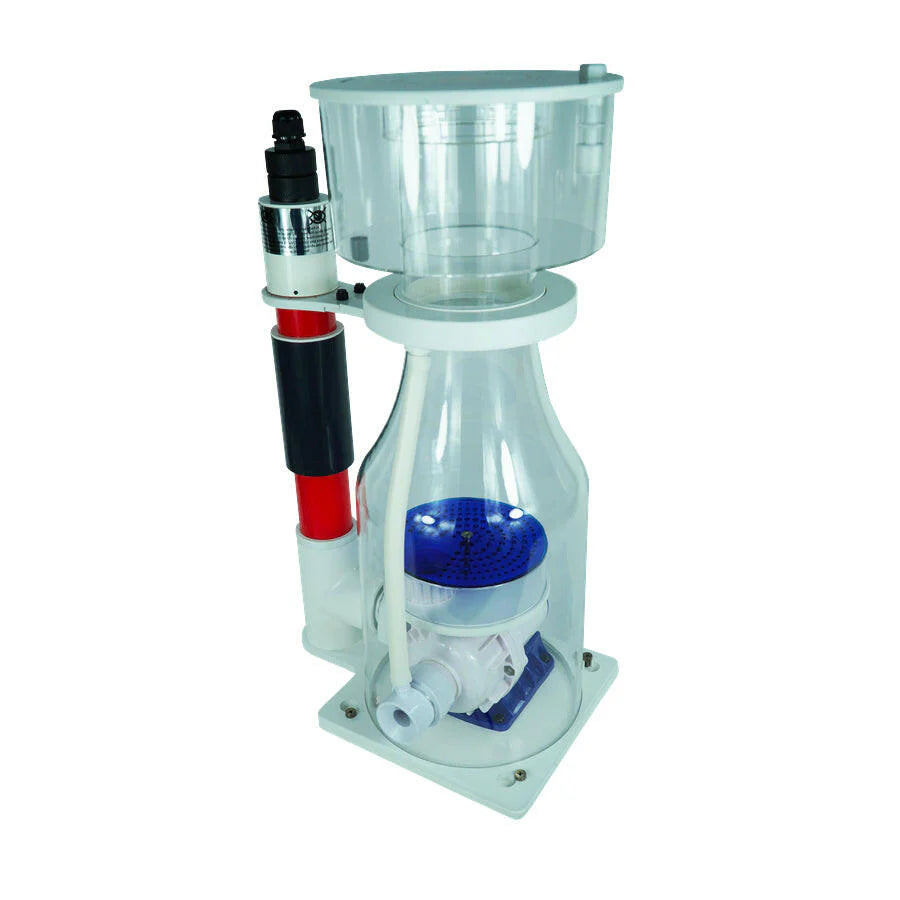

The WaveReef K7-160UV Hybrid UV Protein Skimmer is an innovative all-in-one filtration solution combining a high-performance protein skimmer with an integrated UV sterilizer. This patented hybrid design improves water clarity, removes organic waste, and eliminates harmful microorganisms—making it ideal for modern reef aquariums.
Designed for in-sump installation, it provides powerful filtration while saving space by integrating two essential systems into one compact unit.
Key Features
-
Hybrid filtration system – combines protein skimming + UV sterilization
-
Controllable DC pump with multiple power levels for precise tuning
-
Built-in UV sterilizer (~27W) kills algae, bacteria, and parasites
-
Overflow protection sensor reduces power when collection cup is full
-
Quiet operation with sine-wave DC technology
-
High air intake (~900 L/h) for efficient waste removal
-
Compact footprint ideal for sump installations
-
Durable acrylic body for long-term reliability
Technical Specifications
-
Recommended Tank Size: up to ~250 gallons
-
Footprint: approx. 24.5 × 17 cm
-
Height: ~54 cm
-
Air Intake: ~900 L/h
-
Power Consumption: ~16W (pump)
-
UV Power: ~27W
-
Water Level Requirement: 7–10 inches
How It Works
The skimmer uses a needle-wheel DC pump to create fine air bubbles that capture organic waste (DOCs). Simultaneously, water passes through the integrated UV chamber, where ultraviolet light eliminates harmful microorganisms.
This dual-action process results in:
- Cleaner water
- Reduced nutrients (nitrate/phosphate indirectly)
- Improved overall aquarium health
Benefits for Your Reef Aquarium
- Combines two filtration systems in one unit (space-saving)
- Improves water clarity and transparency
- Reduces harmful bacteria, algae, and parasites
- Enhances skimmer efficiency with stable foam production
- Minimizes maintenance compared to separate systems
Installation & Usage
- Place the skimmer inside sump (7–10” water depth)
- Connect and power the DC controller
- Adjust power level (start mid-level, then fine-tune)
- Allow 3–7 days break-in period
- Empty collection cup regularly
Tip: Use lower power initially to avoid overflow during break-in phase.
Ideal For
- Medium to large reef aquariums (SPS/LPS systems)
- Hobbyists seeking compact, all-in-one filtration
- Tanks with high bioload or nutrient issues
- Systems needing both skimming + UV sterilization
